Magnetic rebound

Model:109A

Technical Specification:

• Item: 109A
• Magnetic rebound
• Material：ABS
• Color：Grey, White, Black
• Distance：39.5mm/20.5mm
• Load Capacity：15N
• Magnetic Force：4300 Gauss
• Fixing with chipboard screws Ø 3.5 mm
• Please choose one of accessories ①②③④
• The function of chosen distance is available on 109 series


500000 times Cycle Test	Gap Adjust	Handle-free	Push to Open	Diversity Models

Product Details

Description & Features:

Optional stoke length rebounder 109A with strong magnetic adsorption performance, combined with high-polymer plastic shell and powerful spring, which is safe and durable from Youlisi injection molding experience for more than 20 years, which can effectively prevent breakage and anti-corrosion aging does not fade after long time.

Adjustable pop-up stroke.

Made of thickened ABS material.

Up to 4300 grauss for closing tightly.

PushOpen with magnet works with reverse spring or unsprung hinges.

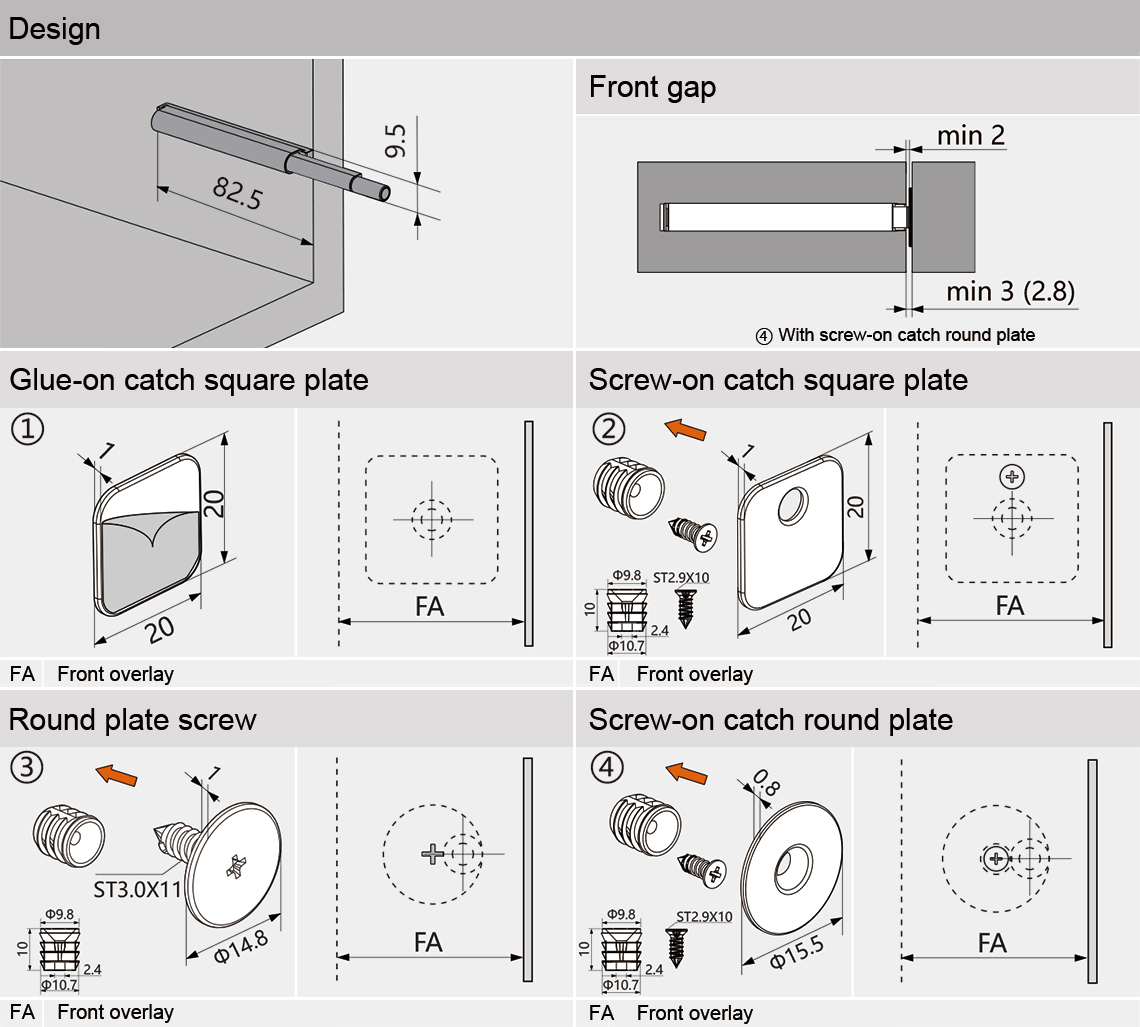

Installation:

Specification:

Code	Color	Description	Units	Load Capacity	Magnetic Flux Density	Travel Distance (Back Adjustment)	Mounting Way	Cycle test	Package
109A	Grey White Black	Built-in Spring Inner Core, Adjustable Rebound Stroke, Magnetic Push to Open	Piece	15N	4300Gs	39.5mm/20.5mm	Chipboard screw M3.5 to install, accessories are available for inside of panel.	50000 times	600pcs/ctn
