Magnetic rebound

Model:109C

Technical Specification:

• Item: 109C
• Magnetic rebound
• Material：ABS
• Color：Grey, White, Black
• Distance：39.5mm/20.5mm
• Load Capacity：15N
• Magnetic Force：4300 Gauss
• Fixing with chipboard screws Ø 3.5 mm
• Please choose one of accessories ①②③④
• The function of chosen distance is available on 109 series


500000 times Cycle Test	Gap Adjust	Handle-free	Push to Open	Diversity Models

Product Details

Description & Features:

Bumper of 109D is made of first-class PVC, cushioning and anti-collision. With drilling in design, you can continue using your favourite hinge and add push to open to any cabinet. PVC bumper will protect your front door without scratches. The trendy appearance of a cabinet door without a handle and the convenience of push-open delivers a new experience to users.

Adjustable pop-up stroke.

Made of thickened ABS material.

Up to 4300 grauss for closing tightly.

PushOpen with magnet works with reverse spring or unsprung hinges.

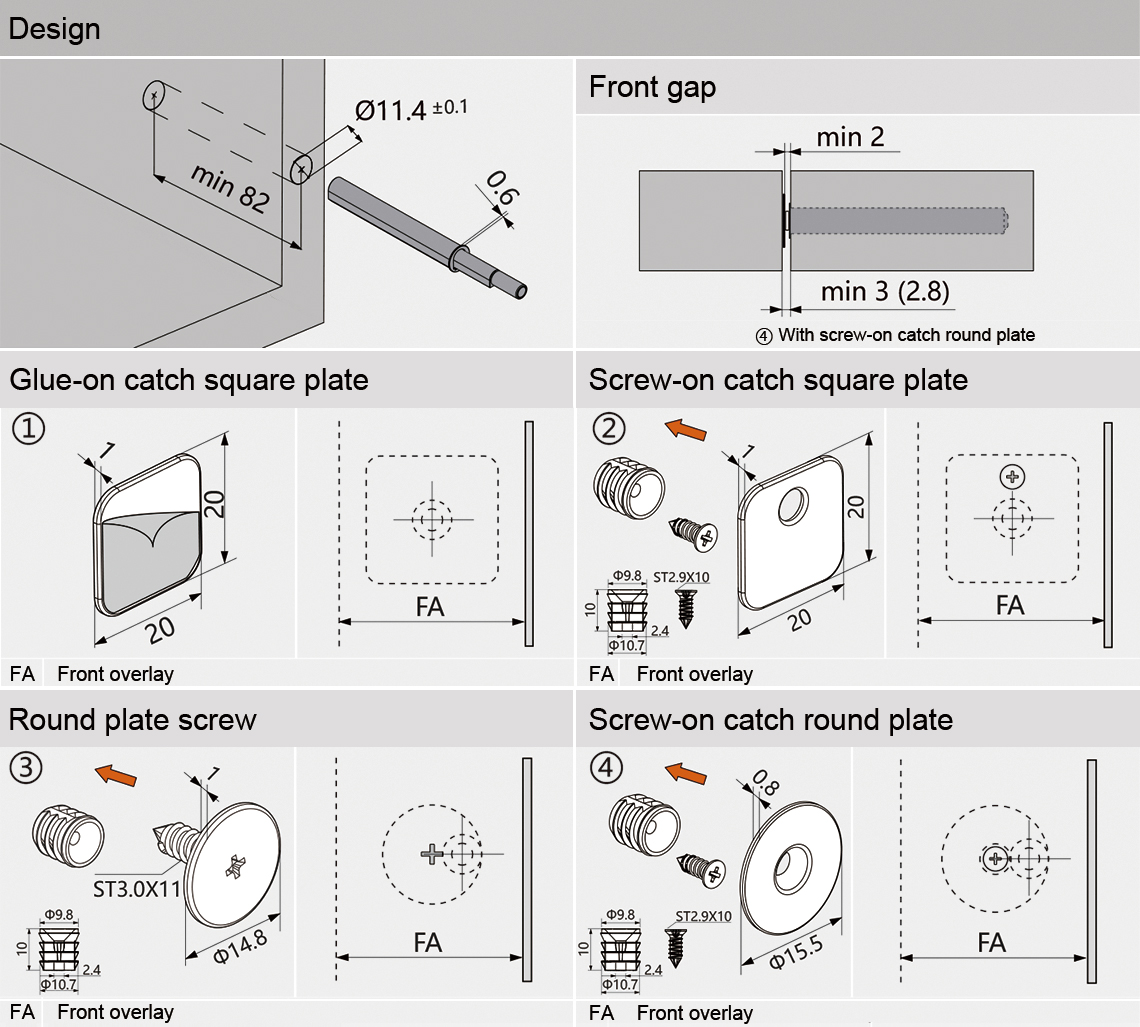

Installation:

Specification:

Code	Color	Description	Units	Load Capacity	Magnetic Flux Density	Travel Distance (Back Adjustment)	Mounting Way	Cycle test	Package
109C	Grey White Black	Built-in Spring Inner Core, Adjustable Rebound Stroke, Magnetic Push to Open	Piece	15N	4300Gs	39.5mm/20.5mm	Inserted installed, accessories are available for inside of panel.	50000 times	600pcs/ctn
