Plastic head rebound

Model:109D

Technical Specification:

• Item: 109D
• Plastic head rebound
• Material：ABS
• Color：Grey, White, Black
• Distance：39.5mm/20.5mm
• Load Capacity：15N
• For drilling installation
• The function of chosen distance is available on 109 series


500000 times Cycle Test	Gap Adjust	Handle-free	Push to Open	Diversity Models

Product Details

Description & Features:

Bumper of 109D is made of first-class PVC, cushioning and anti-collision. With drilling in design, you can continue using your favourite hinge and add push to open to any cabinet. PVC bumper will protect your front door without scratches. The trendy appearance of a cabinet door without a handle and the convenience of push-open delivers a new experience to users.

Adjustable pop-up stroke.

Bumper made of high strength PVC material.

Two stroke length are optional.

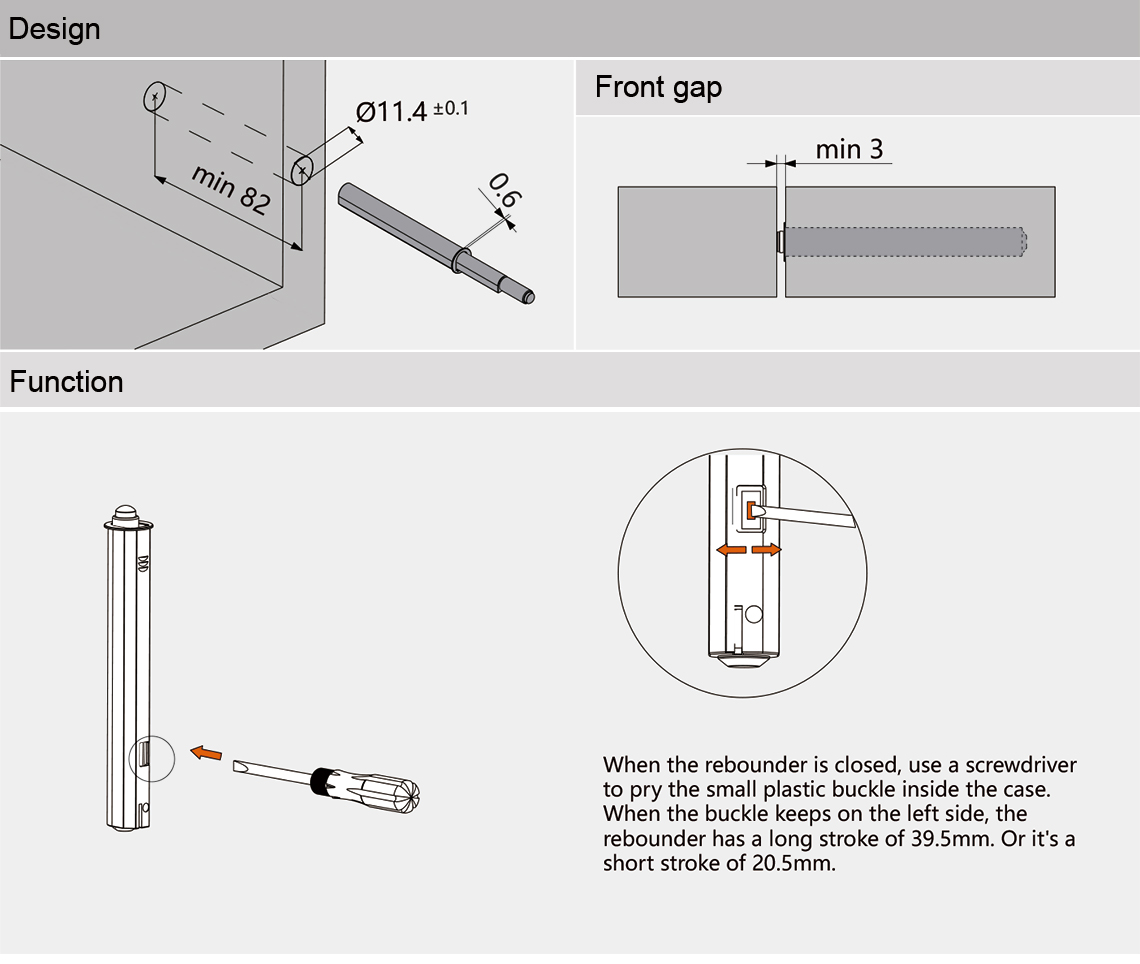

Installation:

Specification:

Code	Color	Description	Units	Load Capacity	Magnetic Flux Density	Travel Distance (Back Adjustment)	Mounting Way	Cycle test	Package
109D	Grey White Black	Built-in Spring Inner Core, Adjustable Rebound Stroke, PVC Facade Push to Open	Piece	15N	/	39.5mm/20.5mm	Inserted installed,invisible design	50000 times	600pcs/ctn
