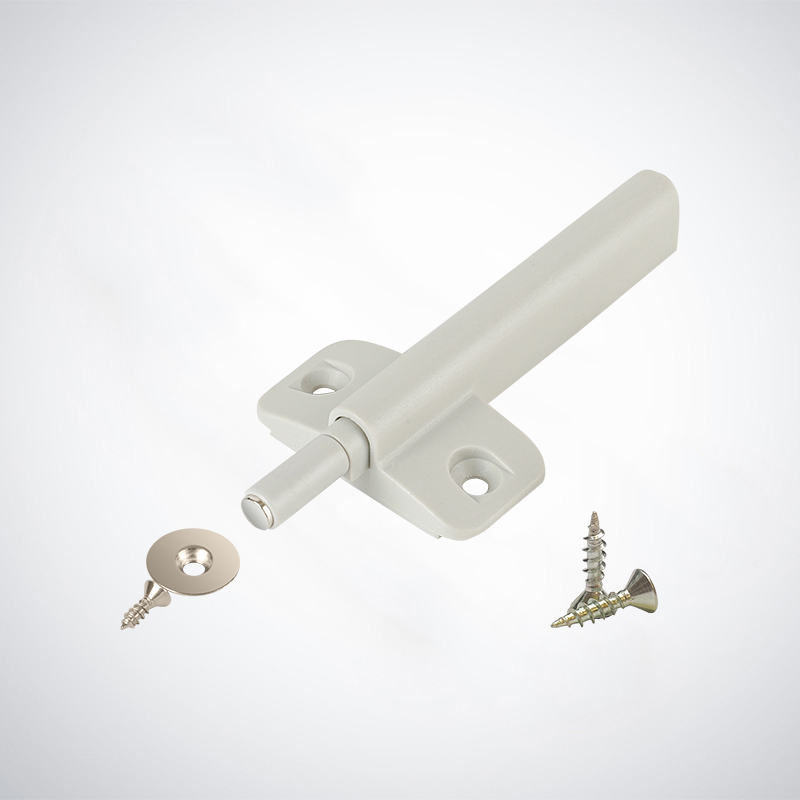

Magnetic rebound

Model:109E

Technical Specification:

• Item: 109E
• Magnetic rebound
• Material：ABS
• Color：Grey, White, Black
• Distance：39.5mm/20.5mm
• Load Capacity：15N
• Magnetic Force：4300 Gauss
• Fixing with chipboard screws Ø 3.5 mm
• Please choose one of accessories ①②③④
• The function of chosen distance is available on 109 series


500000 times Cycle Test	Gap Adjust	Handle-free	Push to Open	Diversity Models

Product Details

Description & Features:

Cross mounting type magnetic integrated rebounder 109E, widened chassis and firmly installed. By moving the small plastic buckle, the unlatch stroke can be realized by 39mm or 29mm, which is best value for door and drawer.

Adjustable pop-up stroke.

Made of thickened ABS material.

Up to 4300 grauss for closing tightly.

PushOpen with magnet works with reverse spring or unsprung hinges.

Installation:

Specification:

Code	Color	Description	Units	Load Capacity	Magnetic Flux Density	Travel Distance (Back Adjustment)	Mounting Way	Cycle test	Package
109E	Grey White	Cross Fixing Magnetic Push to Open, Adjustable Rebound Stroke	Piece	15N	4300Gs	39.5mm/20.5mm	Chipboard screw M3.5 to install, accessories are available for inside of panel.	50000 times	420pcs/ctn
