Partial extension undermount slide with 1D locking device-for 19mm panel

Model:YC229H-E1

Technical Specification:

• Partial extension undermount design
• Dynamic load capacity: 25kg
• Material: Zinc coating sheet
• Material thickness: 1.5 x 1.5mm
• Available size: 250/270/300/350/400/450/500/550/600mm
• Drawer height adjustment range: 0-3mm
• Extremely fluent and silent movement
• Tool-free and convenient installation


OEM technical Support Loading capacity 25KG Monthly capacity 1000000 sets 50000 times cycle test Quiet and smooth sliding
Product Details

Description & Features:

Economical concealed drawer slide with half extension and integrated locking device which comes with height adjustment +1/8" for wood drawers. It can be installed in frameless cabinet application for living room, bedroom, kitchen, bathroom and children's room.

Moving in an impressively smooth and stability.
L-frame stamped by hydraulic press and punched integrally, screwed to the back of drawers, firmer and stronger.
Quick-release is easy to remove, and more convenient to wipe.
Fearless working in the moisture, design for bathroom.

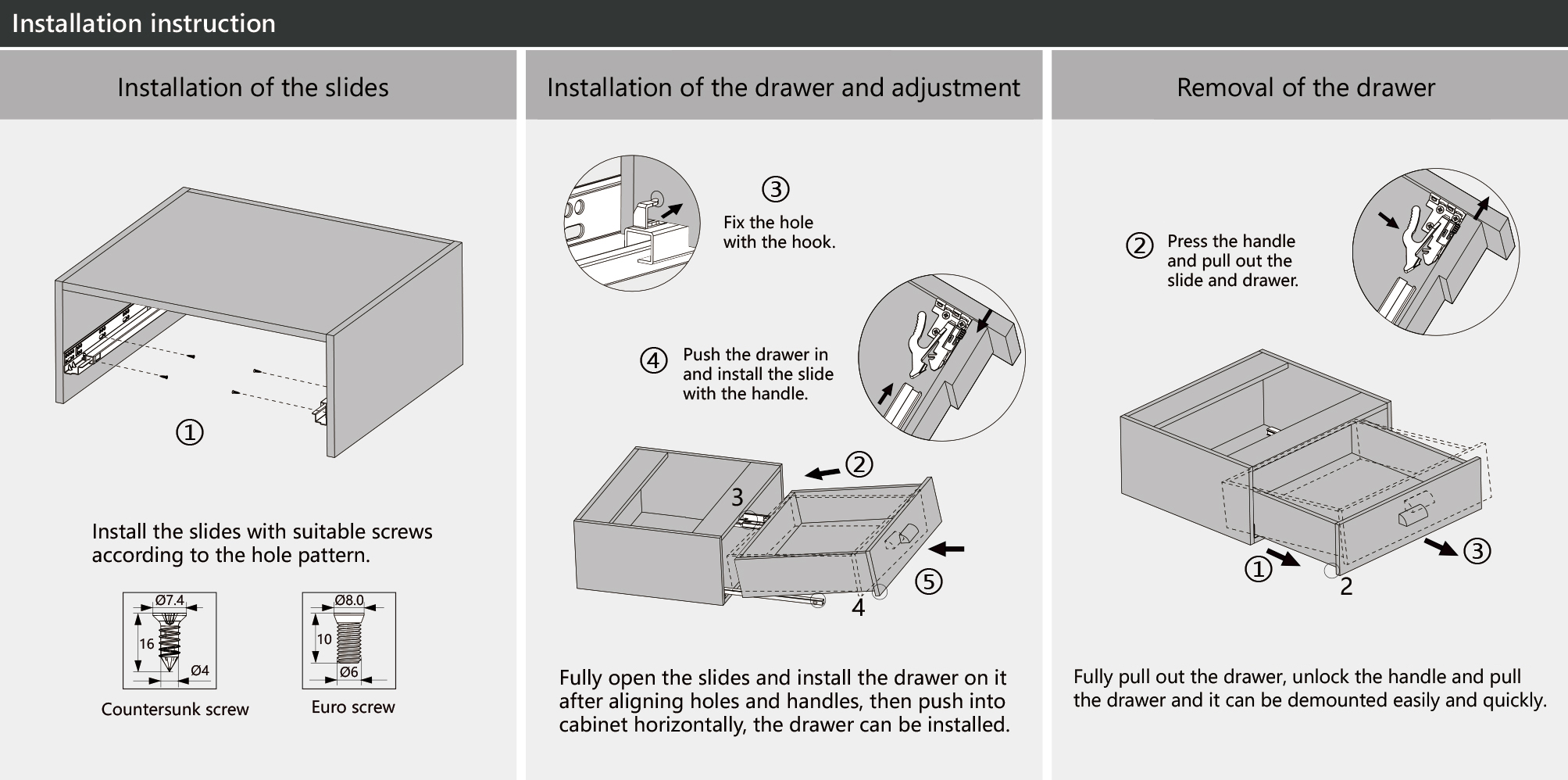

Installation:

Specification:

Slide Code Nominal Length(mm)/Description Units Travel length Min. Cabinet Depth
(Standard/Inner) 		Range of Extension Side Panel Cycle test Drawer Adjustments Dynamic Load Packaging
(Pair/box)
YC229H-250-E1 250mm(10"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 107mm 263/263+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-270-E1 270mm(11"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 132mm 283/283+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-300-E1 300mm(12"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 157mm 313/313+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-350-E1 350mm(14"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 207mm 363/363+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-400-E1 400mm(16"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 232mm 413/413+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-450-E1 450mm(18"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 253mm 463/463+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-500-E1 500mm(20"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 283mm 513/513+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-550-E1 550mm(22"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 333mm 563/563+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
YC229H-600-E1 600mm(24"),Partial Extension, Soft-close, Frameless Undermount with front locking device. Pair 353mm 613/613+X Partial Extension 11/16" - 3/4"
(17-19mm) 		50000 times up and down 55LBS(25KG) 10
